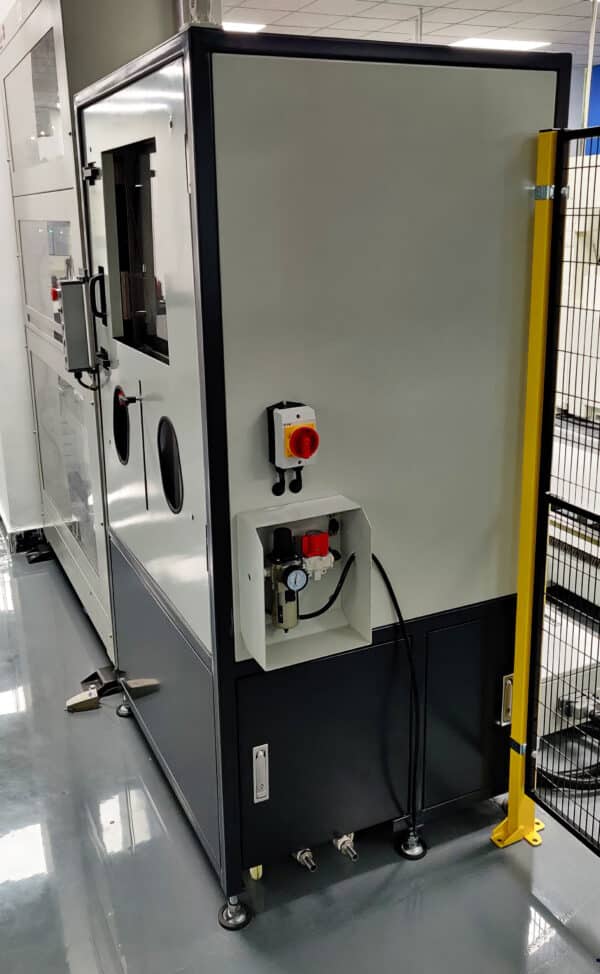

Semi-Automatic cleaning machine
The Semi-Automatic Cleaning Machine is designed for fully automatic robot manufacturing lines.
This machine features an automatic opening and closing door. The workpiece to be cleaned from oil, coolant, chips, and other residues is loaded and unloaded by a robot.
The cleaning process is semi-automatic. Inside the processing chamber, is placed an air gun as well as a spray gun. The workpiece table can easily be turned by hand to reach all areas of the workpiece.
This machine performs soft cleaning by circulating the cleaning fluid in the process tank and rinsing and drying the workpiece.
Select from a range of different programs to provide the best cleaning results.
|Dimensions Loading Window||600mm x 800mm|
|Chucking Systems||Erowa, 3R, individual designs|
|Max. Work piece Dimension||400mm x 400mm x 370mm|
|Filters||2x combined stainless steel filter mesh and bag filters|
|Strainer||stainless steel filter mesh|
- Fully integrated into automatic manufacturing lines
- Automatic opening and closing door
- Robot loading and unloading of workpieces
- An air gun and a spray gun inside the process chamber
- The workpiece table can easily be turned by hand
- The oil pours into a coalescing pool to keep the storage tank clean of chips and excess oil
- Corrosion resistant
- Intensity display
- Digital timer
