- Cleaning of workpieces, mold plates and cavities, motor parts, Breaking system parts, carburetors, and many more
- 2 Way Filter System, active Oil
- Separator 200kg payload
- Maximum dimensions of workpiece 800mm x 600mm x 400mm
- All parts in contact with fluid are made in stainless steel

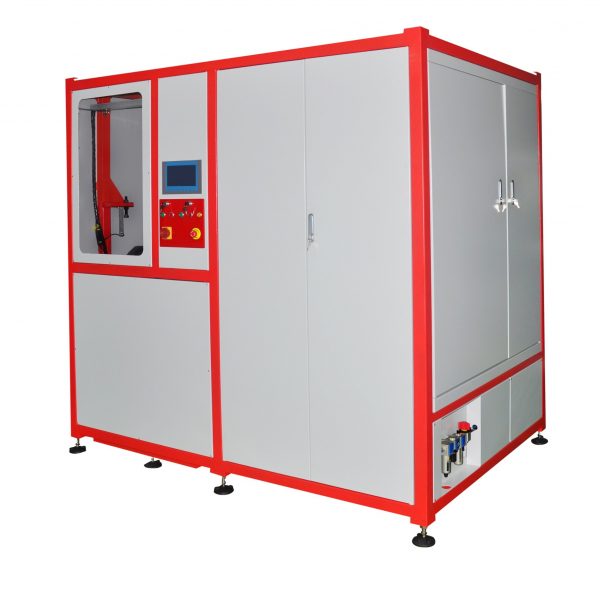

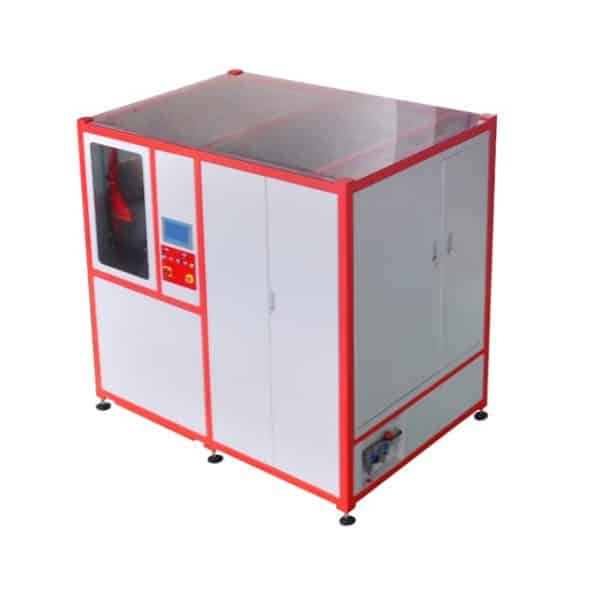

X Clean-Automatic cleaning Machine
Download Product Brochure Get Best Quote
The X Clean is designed for full automatic robot manufacturing lines with an End of Line automated CMM measuring station.
Parts to be cleaned from oil, coolant, chips and other residue will be placed in the X Clean process chamber by a robot.
The cleaning process includes spray cleaning to remove rough dirt and oil, ultrasonic application to remove dirt and particles in small pockets, cavities, and grooves.
The X Clean provides soft cleaning and with precision by circulating the cleaning fluid in the process tank, then a final rinsing and drying of the workpiece.
A range of different cleaning programs can be selected to provide best cleaning results.
| Weight | 1500kg |
| Power consumption | average 6KW |
| Dimensions Loading Window | 600mm x 800mm |
| Chucking Systems | Erowa, 3R, individual designs |
| Max. Payload: | 250kg |
| Max. Workpiece Dimension | 400mm x 400mm x 370mm |
| Filters | 2x combined stainless steel filter mesh and bag filters |
| Strainer | stainless steel filter mesh |
| Storage Tank | 260L |
| Rinsing Tank | 150L |
| Process Tank | 300L |
- Corrosion resistant
- Intensity display
- Digital timer
| Ultrasonic Frequency | 28kHz |
| Timer | 1 min. to 90 min. |
| Power Supply | AC 380V Phase |
| Heating Power | 8000W, max. 80°C |
| Ultrasonic Power | 3600W |
| Pump | 300W |
